Reprap 3D Printer Control Motherboard ZRIBV2/V3 Compatible with RAMPS 1.4 Printer Control Reprap Mendel Prusa ZONESTAR P802 D810
|Возврат денег в течении 45 дней Возврат принимается, если товар не соответствует описанию, покупатель оплачивает обратную доставку; или оставляете себе после обсуждения с продавцом.|
Гарантии: доставка в течении 60 дней
tablet планшет флешка usb 3d printer клавиатура коврик для мыши laptop makeboot ultimaker Newest 3d printer impresora 3d reprap prusa i3 3d printer kit impressora 3d imprimante delta 3d printer prusa i4 stampante 3d 3d-printer kossel 3d drucker metal mini wanhao cheap 3d printers 3d wax printer anet a6 infitary stampante garlic card 3d printer dual extruder sla 3d printer Anet A6 A8 xl 3d printer color TVCO X1 X3 anet a8 3d printer rostock 3d printer 2016 delta kits ZONESTAR P802M P802N Micro SD card makebase V1.1 Ramps 1.4 motherboard ATMEGA2560 Arduino

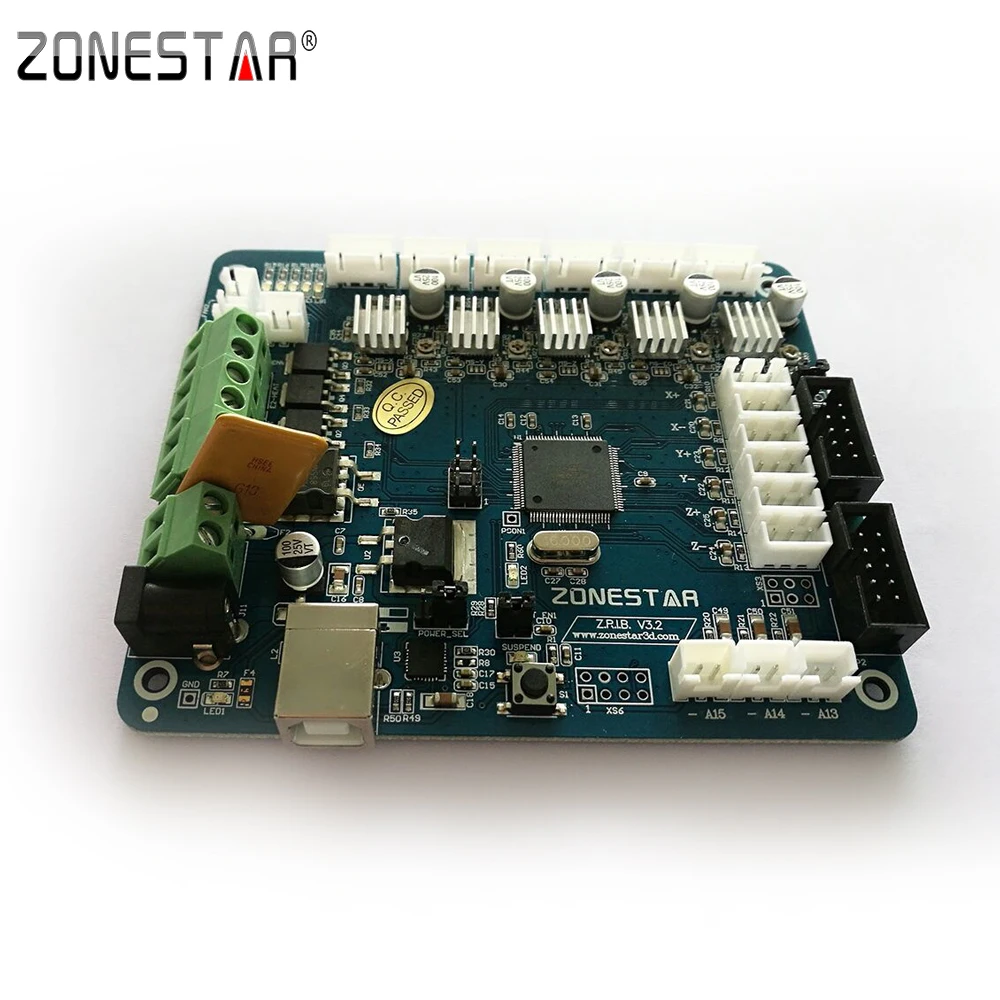

Description: ZRIB is the combination of Arduino MEGA2560 plus RAMPS1.4 and A4982 in 3D printer. It is a feature rich all-in-one electronics solution for Reprap and other CNC devices. It features an onboard ATmega2560. Its five motor outputs are powered by A4982 stepper drivers. It use FTDI FT232R device(V2) or CP2012(V3) for USB and not ATMEGA16U2 as MEGA2560 for ARDUINO. The board can use the same firmware as Ramps1.4. ZRIB V2 is designed to be flexible in the user’s power source availability, allowing any power supply from 12V-24V. It is supplied with a P802N Frimware defualt and you can upload another firmware. You can upload(Arduino IDE ,Cura etc.) firmware through USB port. Features:
- Combinate Ard-uino MEGA2560 + RAMPS1.4 + 5 x A4982 drivers
- Ard-uino MEGA compatible Atmega2560 processors are compatible with all RAMPS class firmware
- Firmware can use the same configuration as RAMPS1.4
- It is suitable for dual-Extrude printer
- Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board
- 3x temperature ADC connectors for thermistors
- 2x Fan control and 1x board cooler connector
- Up to 6 motor drivers (2x Serial connect Z motor connector)ith A4982
- 4x PWM capable power mosfet outputs with voltage selector for MainPower.(Bed, Extruder0, Extruder1, Fans)
- 6x endstop connectors with selectable power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax, with filter capacitor and the pull-up resistor on the board
- Recoverable fuse for short-circuit protection.
V2 version USB Driver Chip FT232RL, you can get files from ftdichip website to setup driver
V3 version USB Driver Chip CP2012, you can get files from Silicon-Laboratories website to setup driver
